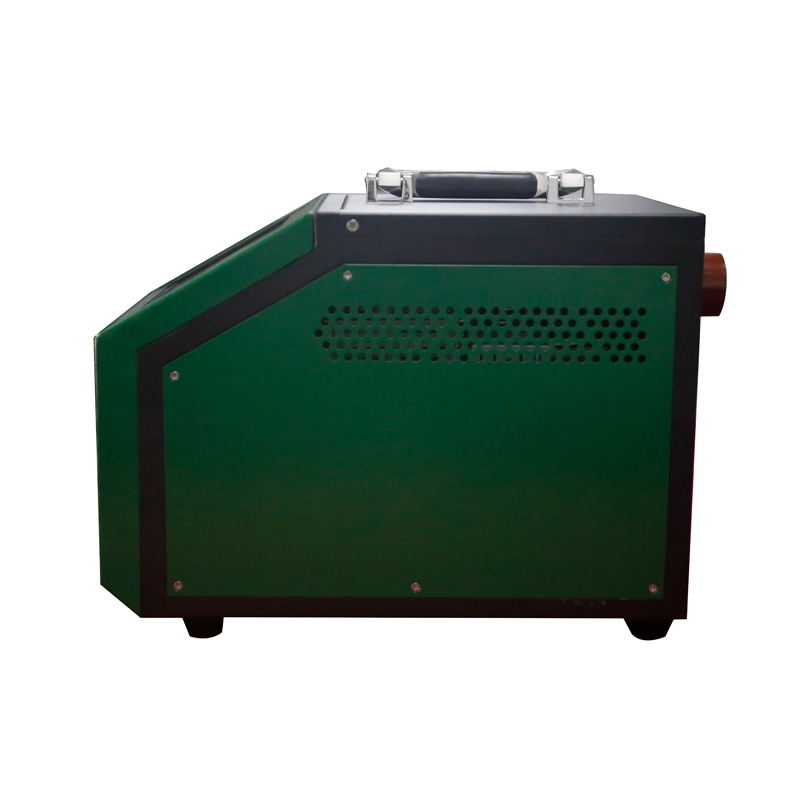

Product Characteristics

1, discharge using polymer positive temperature coefficient resistance: low power consumption, strong surge resistance, high safety factor to avoid red heat phenomenon, with overcurrent self-protection function.

2, the main control board adopts imported STMicroelectronics high-performance ARM CPU: stable performance, high frequency, powerful, discharge process adopts double CPU redundancy design, the main and secondary cpus work together to maximize the protection of the test safety and reliability.

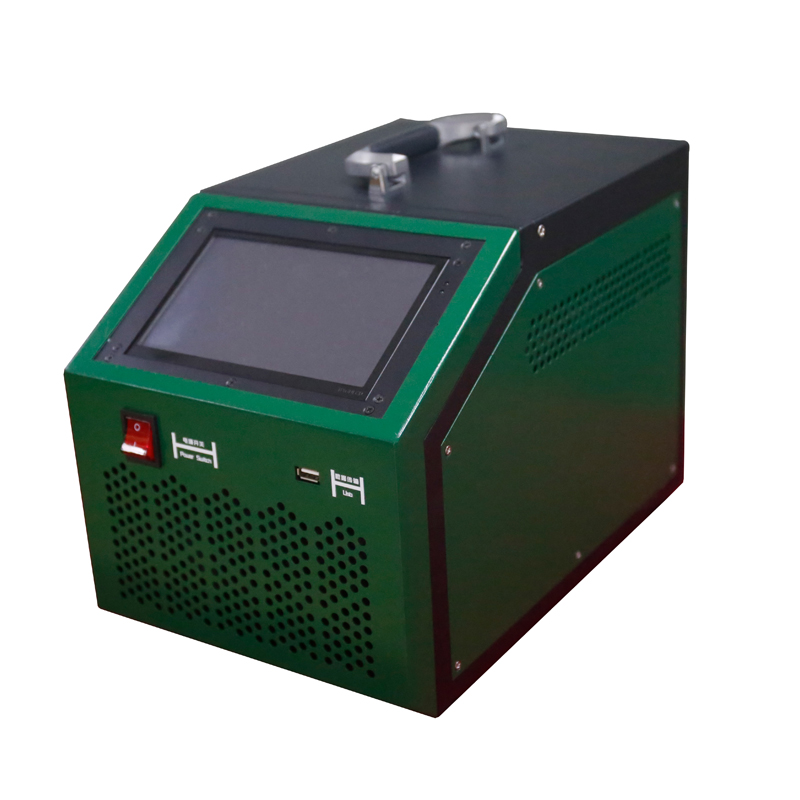

3, military-grade touch screen: 7-inch display screen, touchpad using military-grade multi-layer composite film resistance touch pad, super anti-interference ability, backlight Chinese display panel, in any environment, can clearly display data normally.

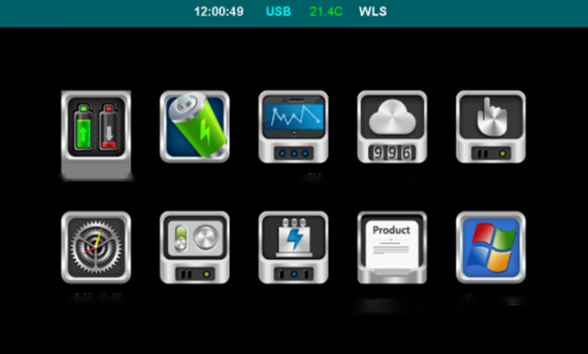

4, activation parameter preset function: built-in a variety of commonly used activation templates to meet the parameter Settings of different types of batteries, template data can be saved after power failure, and the test can be started directly after power-on, without frequent parameter setting, so that the test operation is simple and efficient.

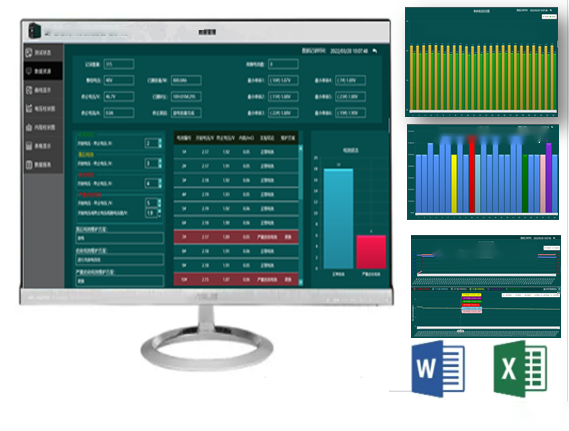

5, Professional PC data analysis management software: it can conduct in-depth analysis of the test data generated by the equipment, single voltage curve, single bar chart, real-time data table, password protection of the upper computer software, experimental conclusions and other functions, and can automatically generate Excel or Word document format reports according to requirements and then print and archive them.

6, powerful data storage and backup functions: built-in 16GB data storage space, can store more than 1000 groups of charge and discharge data, and support historical data viewing, analysis, deletion and other functions, equipped with 16GB U disk, data analysis and backup management through PC software.

7, historical data curve view: the built-in data file can be queried in the form of charts and waveform curves, as well as the waveform of magnifying, shrinking, left shift, right shift and other multi-angle display.

8, can set a variety of charge and discharge test alarm functions: including discharge capacity to, charge and discharge time to, single voltage limit, activation times to, which any test condition will automatically stop charge and discharge, and over voltage, over current, over temperature, data storage abnormalities, voltage test terminal reverse connection and other test fault alarm display.

9, with calibration function: the instrument with voltage, current calibration correction function, the measurement error can be calibrated and corrected on site to ensure the measurement accuracy. This function is especially suitable for use when instrument readings are required to be consistent with field instruments.

10, rich expansion interface: the back of the instrument has multi-machine parallel, remote control, USB and other communication interfaces.

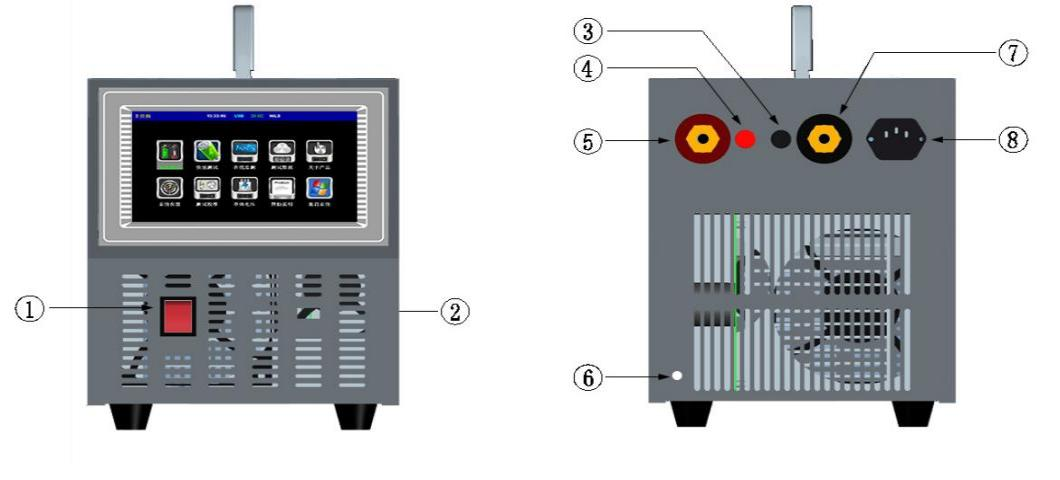

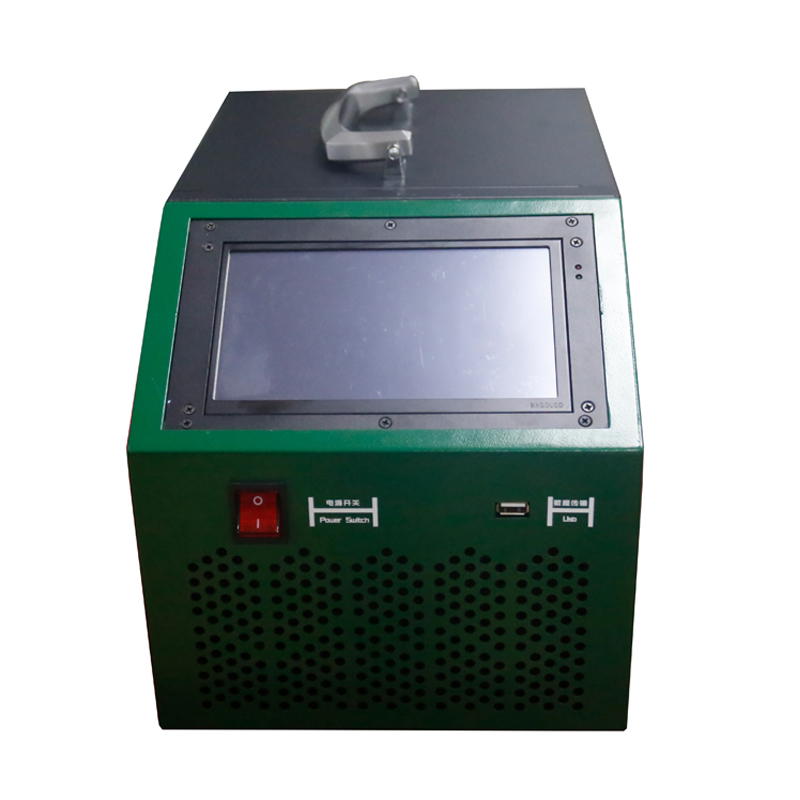

① Power switch

② USB

③ Total voltage negative electrode

④ Total voltage positive electrode

⑤ Current terminal positive

⑥ Ground Wire

⑦ Current terminal negative

⑧ Power supply AC220V

11, wide application industry: applicable to power distribution system, communication base station, tower, battery manufacturers, railways, factory and other fields.

Technical Specification
