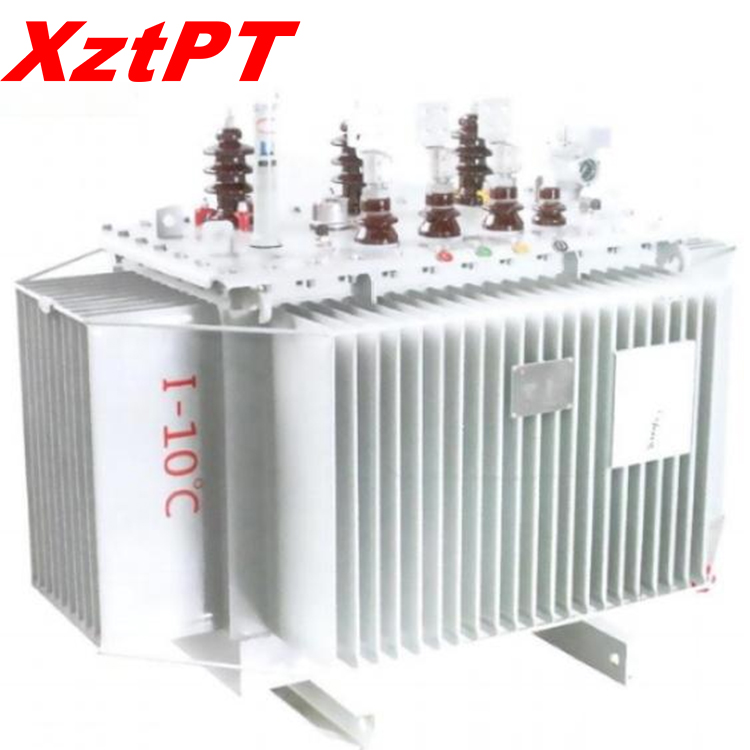

S11-M-1600 Oil-Immersed Transformer

Oil-Immersed Transformer

I. Product Overview

S11 type is a product independently developed by our company on the basis of the original S9 distribution transformer, through the research and application of new materials, new processes and the combination of independent innovation and technology introduction, through the optimization and innovative design of the core and coil structure, to achieve the purpose of reducing no-load loss and noise.

Product Details

II. Main Product Performance Parameters

Model	Rated capacity(kVA)	Connection group grade	Voltage combination((kV)			Open circuit losses (w)	Dy load losses(w)	Yy load losses(w)	Short-circuit impedance (%)
Model	Rated capacity(kVA)	Connection group grade	High voltage	Tapping range	Lovoltagew	Open circuit losses (w)	Dy load losses(w)	Yy load losses(w)	Short-circuit impedance (%)
S11-M-30	30	Yyno or Dyn11	10.5 10 6.3 6	±5%或 or ±2X2.5%	0.4	100	630	600	4
S11-M-50	50					130	910	870
S11-M-63	63					150	1090	1040
S11-M-80	80					190	1310	1250
S11-M-100	100					200	1580	1500
S11-M-125	125					240	1890	1800
S11-M-160	160					280	2310	2200
S11-M-200	200					340	2730	2600
S11-M-250	250					400	3200	3050
S11-M-315	315					480	3830	3650
S11-M-400	400					570	4520	4300
S11-M-500	500					680	5410	5150
S11-M-630	630					810	6200		4.5
S11-M-800	800					980	7500
S11-M-1000	1000					1150	10300
S11-M-1250	1250					1360	12000
S11-M-1600	1600					1640	14500
S11-M-2000	2000					1940	18300		5
S11-M-2500	2500					2290	21200		5
