Resistance range

10.0uΩ-50.00KΩ

Resolution

0.1uΩ

Accuracy

0.2%FS

Detection method

Four-wire method test

Test current

10A, 5A, 1A, 0.1A, 10mA, 1mA

Maximum short circuit current

10A

Overload protection

Have

Automatic discharge

Have

Power supply

DC12.6V 2500mAh large capacity lithium battery

Charging function

Have

Backlight

Yes, suitable for dark places

Display mode

Full color LCD display

Touch screen operation

Yes

LCD size

Length and width: 108mm×65mm

Meter size

Length, width and height: 240mm×188mm×85mm

Test lead length

5 meters, 1 red and 1 black

USB interface

With USB interface

Communication line

1 USB communication line

Data storage

500 groups, "MEM" storage indication, displaying "FULL" symbol means the storage is full

Data access

Data access function: "MR" symbol display

Overflow display

Overrange overflow function: "OL" symbol display

Battery voltage

The battery level is displayed in real time, indicating that the battery needs to be charged in time when the battery voltage is low

Automatic shut-down

The meter shuts down after about 15 minutes of inactivity

Power consumption

Standby: about 120mA (20% brightness)

Measurement: 27W Max

Quality

Meter: 1100g (including battery)

Test line: 850g

Working temperature and humidity

-10℃～50℃; below 70%rh

Storage temperature and humidity

-20℃～60℃; below 70%rh

Insulation resistance

10MΩ or more (500V between circuit and case)

Pressure resistance

AC 3700V/rms (between circuit and case)

Electromagnetic properties

IEC61010-4-3, radio frequency electromagnetic field≤1V/m

Suitable for safety regulations

IEC61010-1, CAT Ⅲ 600V, pollution level 2, JJG724-1991 "Verification Regulations for DC Digital Ohmmeter", JJG166-1993 "Verification Regulations for DC Resistors", "DL/T967-2005 Loop Resistance Tester and DC Resistance Fast Tester Verification Regulations"

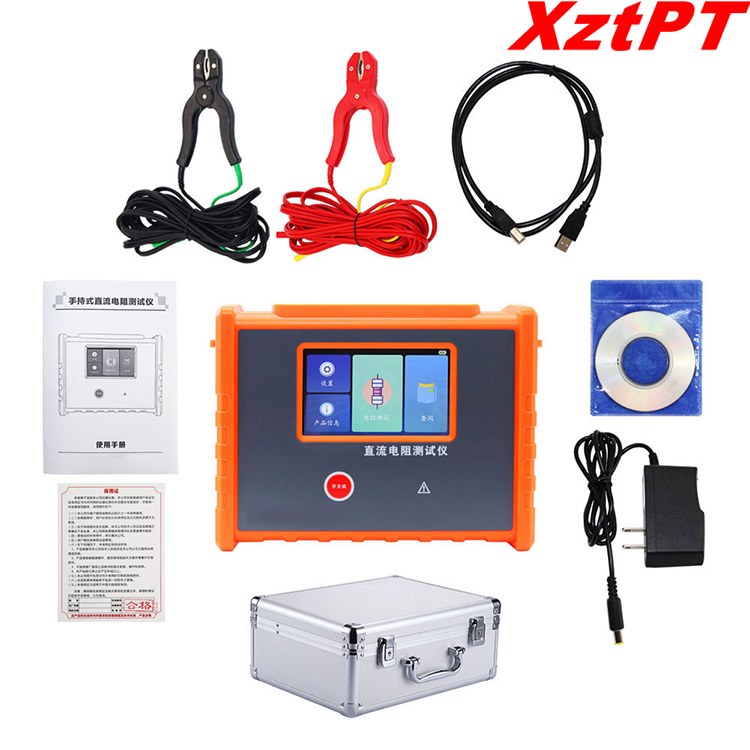

Test line

2 (red, 1 black each)

CD

1 piece

Data line

1

Charger

1

Manual, Warranty

1 set

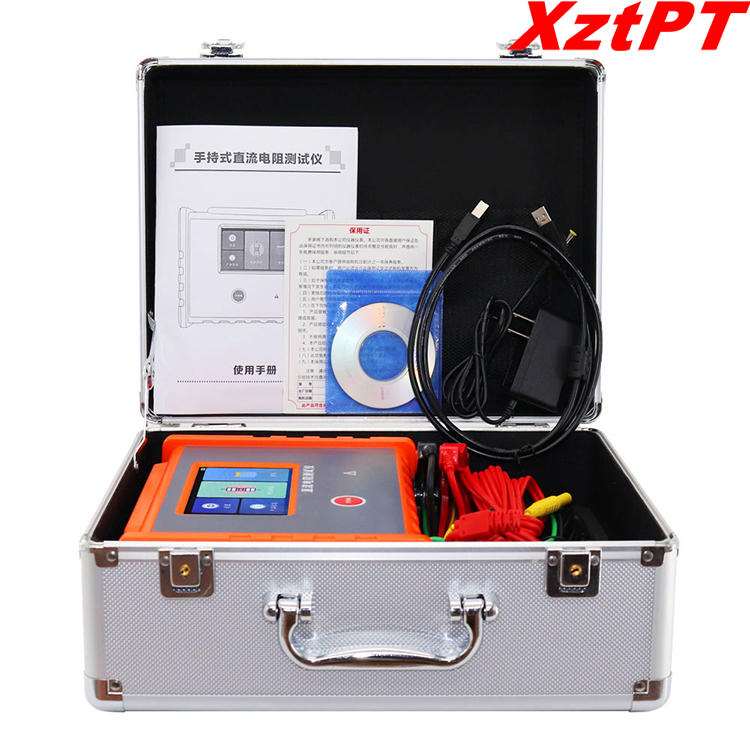

Instrument box

1
