Product Details

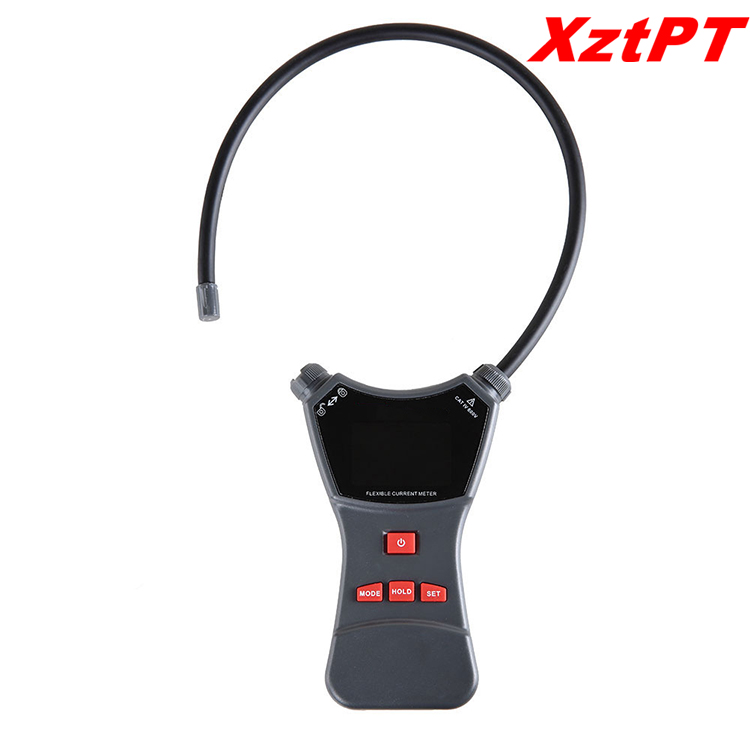

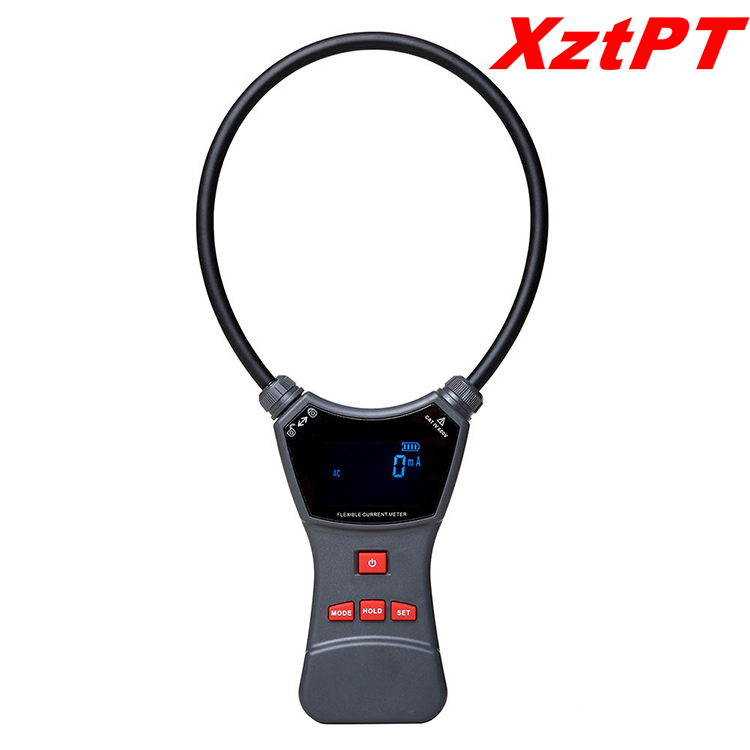

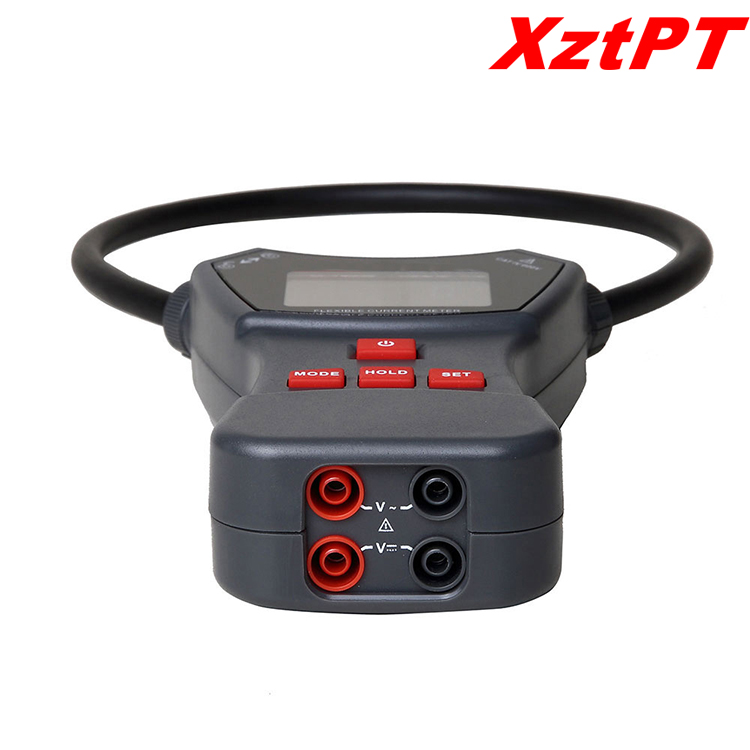

XZTZ1050 series flexible current clamp meter is carefully designed and manufactured for field testing of AC large current and leakage current. With the characteristics of high precision,good linearity and anti-interference ability, it can replace traditional ordinary clamp meters and large-caliber clamp meters to measure large current leakage current, and is widely used in electric power, communication, meteorology, railway, oil field, construction, measurement, scientific research and teaching units, industrial and mining enterprises and other fields. It is especially suitable for places with dense wiring, transformers connected to the wall for core current testing, thick wire cable testing, relay protection, thyristor rectification, variable frequency speed regulation, semiconductor switches, power electronic conversion equipment, arc welding and other serious signal distortion. Current testing in industrial environments.
Model Specification
Model | XZTZ1050A | XZTZ1050 | XZTZ1050E |
Coil length | 470mm | 470mm | 950mm |
Coil inner diameter | φ150mm | φ150mm | φ300mm |
Current range | 0A-10000A | 0mA-10000A | 0mA-10000A |
Current resolution | 0.1A | 1mA | 1mA |
Technical Specification
Features | Current test, leakage current test |
Current accuracy | Accuracy ±2%±5dgt (the wire is at the center of the flexible coil, 23℃±2℃) |
AC voltage | 0.0V～750V AC Accuracy ±1.5%rdg±3dgt |
AC Voltage Resolution | 0.1V |
DC voltage range | 0.0V～1000V DC Accuracy ±1.5%rdg±5dgt |
DC voltage resolution | 0.1V |
Sample rate | 2 times/sec |
Powered by | DC4.5V AA alkaline battery (1.5V AAA×3) |
Backlight | Have |
Test method | flexible CT |
Meter size | Host size: width, thickness and height 151*100*35mm (without coil) |
LCD size | 45mm×28mm |
Coil thickness | Φ8mm (suitable for narrow environments and places with dense wiring, etc.) |
The total mass of the instrument | 220g (φ150mm diameter including battery) |
Overflow display | Overrange overflow function: "OL" symbol display |
Data storage | 500 groups |
Data full | Data full function: "FULL" symbol display |
Battery voltage | The battery voltage is displayed in 4 grids. When the battery symbol is empty, the battery is less than 3.15V. |
Insulation resistance | Greater than 100M (1kV) |
Working temperature and humidity | -10℃～40℃ Below 70%rh |
Storage temperature and humidity | -10℃～60℃ Below 80%rh |
Suitable for safety regulations | IEC1010-1, IEC1010-2-032, pollution degree 2, CAT Ⅲ (600V) IEC61326 (EMC standard) |
