XZTY3100C Earth Resistance/Soil Resistivity Tester
Product Details
I. Introduction

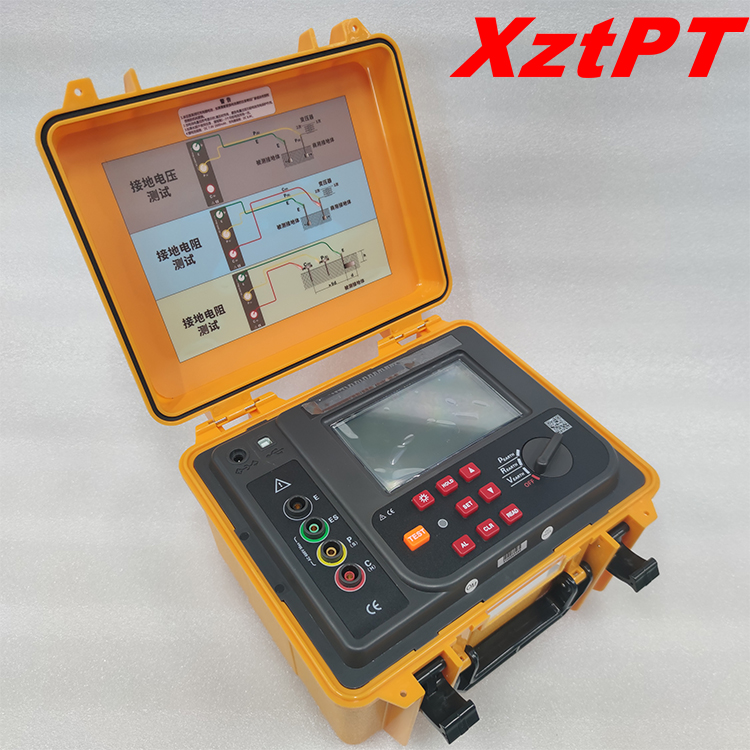

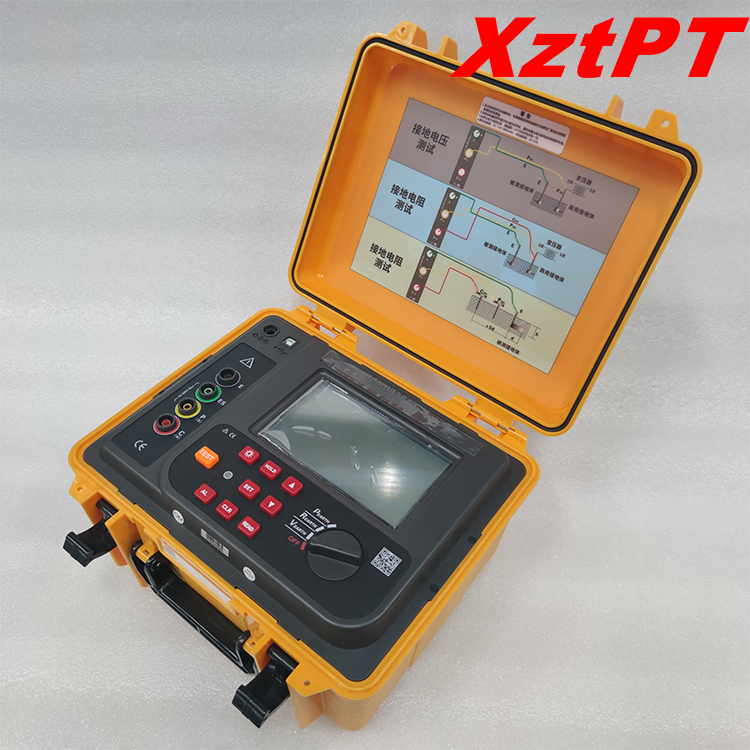

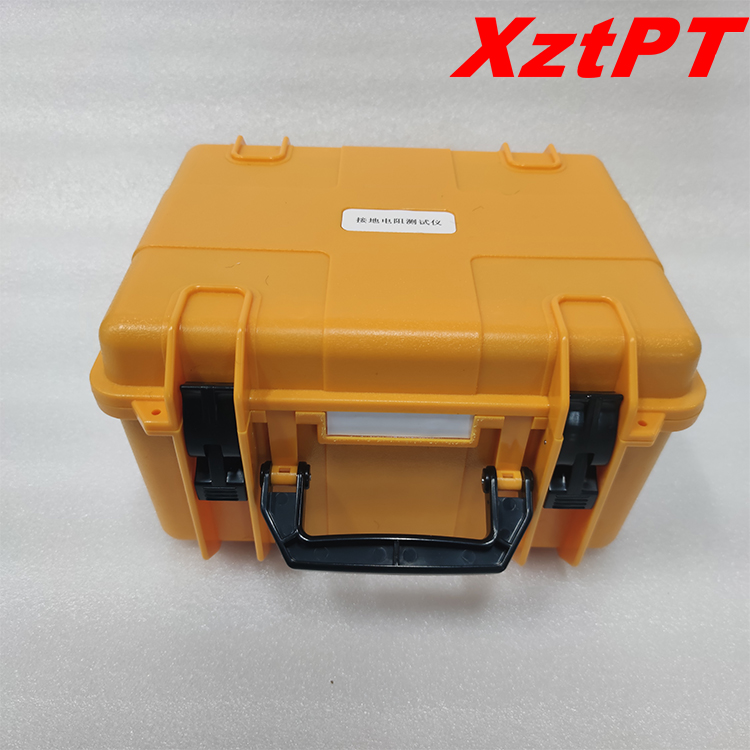

XZTY3100C Earth Resistance Soil Resistivity Tester is specially designed and manufactured for on-site measurement of earth resistance, soil resistivity, earth voltage. Apply digital processing technology, precision 4-wire method, 3-wire method and simple 2-wire method to measure grounding resistance; Adopt FFT (fast Fourier transform) technology, AFC (automatic frequency control) technology, automatic identification of interference and selection of measurement frequency, to minimize the impact of interference, provide more accurate earth resistance value. With unique anti-interference ability and environmental adaptability, high repeated test consistency, ensuring high precision, high stability and high reliability for long-term measurement. The tester case is made of waterproof protection box, anti-collision, anti-drop, waterproof (protection grade IP65), strong and durable, and also equipped with a large-capacity rechargeable lithium battery pack, especially suitable for outdoor construction. Widely used in power, telecommunications, meteorology, oil fields, construction, lightning protection and industrial electrical equipment, such as grounding resistance, soil resistivity, grounding voltage.

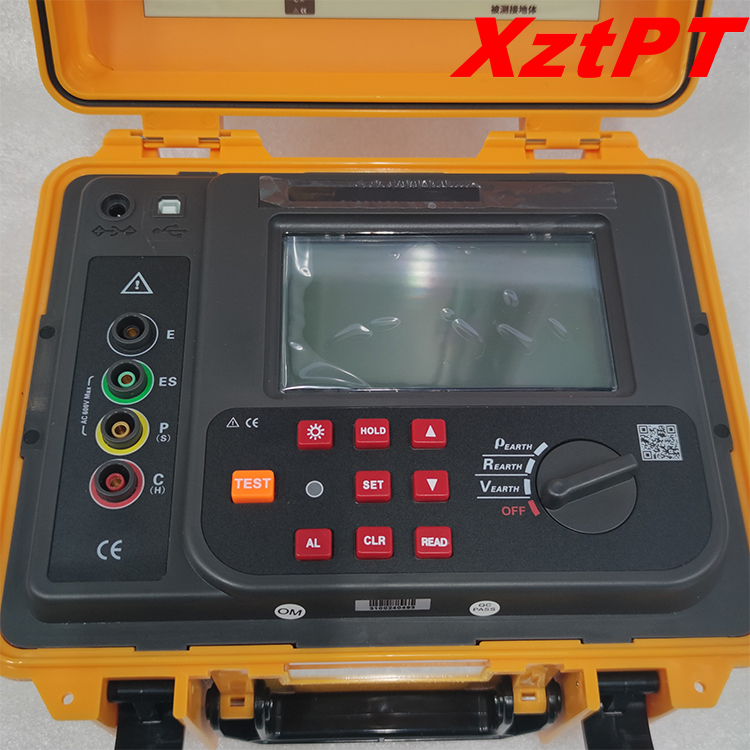

XZTY3100C Earth Resistance Soil Resistivity Tester is composed of host machine, monitoring software, testing wires, auxiliary ground pillars, communication wires etc. The large LCD display of host machine, with white backlight and bar graph indicating that can be seen clearly. At the same time it can store 300 sets of data, fulfilling historical inquiry and online real-time monitoring through monitoring software, dynamic display, alarm indicator, and with the functions as historical data access, reading, preservation, report forms, printing and so on.
XZTY3100C Earth Resistance Soil Resistivity Tester also named: Precision Earth Resistance Tester, 4-pole Earth Resistance Tester, 2/3/4-pole Earth Resistance Tester, Soil Resistivity Tester.
Model Category
Product Name | Model | Function | Remark |
Digital Earth Resistance Tester | XZTY3000C | Earth resistance test Earth voltage test | |
Earth resistance / Soil Resistivity Tester | XZTY3100C | Earth resistance test Earth voltage test Soil resistivity test | |
Double Clamp Earth Resistance Tester | XZTY3200C | Earth resistance test Earth voltage test Soil resistivity test Current, leakage current test |
Influence Constant | Base Condition | Working Conditions | Remark |
Ambient Temperature | 23℃±1℃ | -10℃-40℃ | ---- |
Ambient Humidity | 40%-60% | ＜80% | ---- |
Working Voltage | DC 7.8V±0.1V | DC 7.8V±0.6V | --- |
Auxiliary Earth Resistance Value | ＜100Ω | ＜30kΩ | --- |
Interference Voltage | None | ＜20V | ---- |
Interference Current | None | ＜2A | |
Electrode Distance of measuring R | a＞5d | a＞5d | ---- |
Electrode Distance of measuring ρ | a＞20h | a＞20h | ---- |
Function | 2/3/4-pole measurement for earth resistance, soil resistivity, earth voltage |
Power Supply | DC 7.4V 2600mAh rechargeable lithium battery, full of about 8.4V |
Measurement Range | Earth Resistance: 0.00Ω-30.00kΩ |
Soil Resistivity: 0.00Ωm-9000kΩm | |
Earth Voltage: 0V～600V | |
Measurement Mode | Precise 4-pole measurement, 3-pole measurement, simple 2-pole measurement of earth resistance |
Measurement Method | Earth Resistance: rated current change-pole method, test current 20mA Max Soil Resistivity: 4-pole method (Wenner method) Earth Voltage: average rectification(between P(S)-ES) |
Test Frequency | 128Hz/111Hz/105Hz/94Hz(AFC) |
Test Current | >20mA (sine wave) |
Open-circuit Test Voltage | AC 40V max |
Test Voltage Wave | Sine wave |
Electrode Distance Range | 1m-100m |
Shift | Earth resistance: 0.00Ω-30.00kΩ automatic shift |
Soil Resistivity: 0.00Ωm-9000kΩm automatic shift | |
Backlight | Controllable white screen backlight, suitable for dim places |
Display Mode | 4-digital super-large LCD display, white screen backlight |
Measurement Indicator | During measurement, LED flash indicator, LCD count down display, progress bar indicator |
LCD Frame Dimension | 128mm×75mm |
LCD Display Area | 124mm×67mm |
Meter Dimension | 280mm(L)×260mm(W)×160mm(H) |
Standard Test Wire | 4 wires: each for red 20m, black 20m, yellow 10m, and green 10m |
Simple Test Wire | 2 wires: each for red 1.6m and black 1.6m |
Auxiliary Ground Rod | 4 wires: Φ10mm×250mm |
Measurement Rate | Voltage to earth: about 3 times/second |
Earth resistance, soil resistivity: about 5 seconds/time | |
Measuring Times | Over 5000 times (Short-circuit test, interval time should be at least 30 seconds) |
Circuit Voltage | below AC 600V |
Communication Interface | USB interface, software monitoring, storage data can be uploaded to computer, saved or printed. |
Communication Wire | USB communication cable 1PCS, length 1.5m |
Data Storage | 300 sets, “MEM” symbol storage indicator, flash display “FULL” symbol indicate storage full |
Data Hold | Data hold function: “HOLD” symbol display |
Data Access | Data read function: “READ” symbol display |
Overflow Display | Over range overflow function: “OL” symbol display |
Interference Test | Recognize interference signal automatically, “NOISE” symbol display when interference voltage exceed 5V |
Auxiliary Earth Test | With auxiliary earth resistance test function, 0.00KΩ-30kΩ (100R+rC<50kΩ, 100R+rP<50kΩ) |
Alarm Function | Measurement value exceeds alarm setting value, will “Toot-toot-toot” alarm hint |
Auto-shut off | Automatically shut down after 10 minutes of power on |
Battery Voltage | While battery voltage decreases to around 7.5V, will display battery voltage low symbol“ ”, and reminding to charge |
Working Power | Standby: about 20mA (Backlight shut off) |
Boot up and with backlight: about 45mA (25mA without backlight) | |
Measurement: about 100mA (Backlight shut off) | |
Weight | Tester: 2290g |
Tester bag:915g | |
Test wires: 1560g | |
Auxiliary ground rods: 935g (4pcs) | |
Working Temperature & Humidity | -10℃-40℃, below 80%rh |
Storage temperature & humidity | -20℃-60℃, below 70%rh |
Overload Protection | Measuring earth resistance: between each interfaces of C(H)-E、P(S)-ES, AC 280V/3 seconds |
Protection Level | IP65(close the case) |
Insulation Resistance | Over 20MΩ (between circuit and enclosure it is 500V) |
Withstand Voltage | AC 3700V/rms (Between circuit and enclosure) |
Electromagnetic Features | IEC61326(EMC) |
Protection Type | IEC61010-1 (CAT Ⅲ 300V、CAT IV 150V、Pollution 2), IEC61010-031, IEC61557-1 (Earth resistance), IEC61557-5 (Soil resistivity), JJG 366-2004 |
Measurement Function | Measurement Range | Accuracy | Resolution |
Earth Resistance (R) | 0.00Ω-30.00Ω | ±2%rdg±3dgt | 0.01Ω |
30.0Ω-300.0Ω | ±2%rdg±3dgt | 0.1Ω | |
300Ω-3000Ω | ±2%rdg±3dgt | 1Ω | |
3.00kΩ-30.00kΩ | ±4%rdg±3dgt | 10Ω | |
Soil Resistivity (ρ)
| 0.00Ωm-99.99Ωm | (ρ=2πaR a:1 m～100m；π=3.14) | 0.01Ωm |
100.0Ωm-999.9Ωm | 0.1Ωm | ||
1000Ωm-9999Ωm | 1Ωm | ||
10.00kΩm-99.99kΩm | 10Ωm | ||
100.0kΩm-999.9kΩm | 100Ωm | ||
1000kΩm-9000kΩm | 1kΩm | ||
Earth Voltage | AC 0.0-600V | ±2%rdg±3dgt | 0.1V |
