Receiver: DC 7.4 2 6 00mAh

wireless transmission

230Mhz

Wireless transmission distance

200m (in an open environment)

Electricity voltage level

1kV～500kV

Electricity test method

Non-contact, all-round electrical inspection

Alarm distance error

±20cm

Receiver LCD

3.5-inch true color screen; display area: 71mm×53mm

Meter size

Receiver: 198mm×108mm×45mm

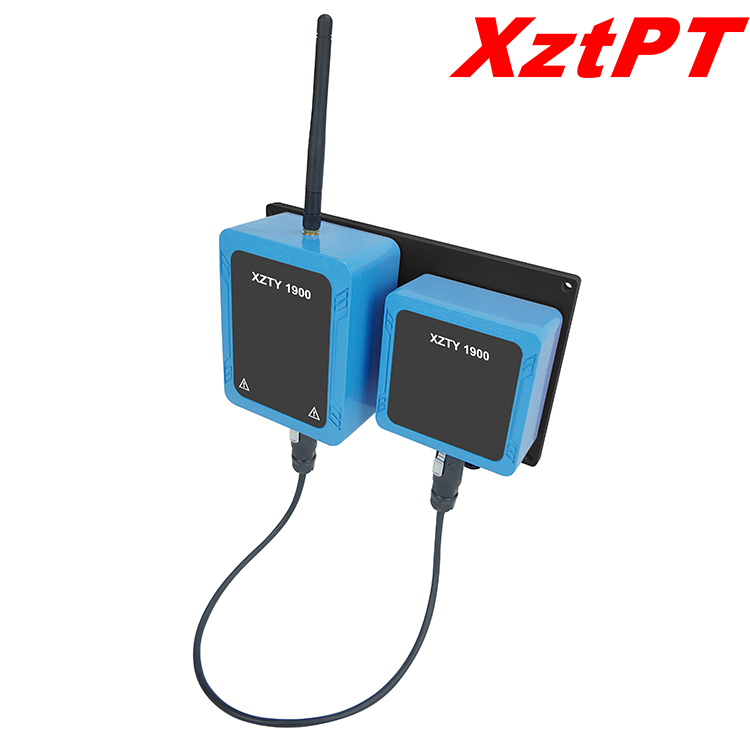

Sensor: 126mm×92mm×62mm

External battery: 98mm×85mm×46mm

Instrument quality

Receiver: about 404g; sensor: about 234g; external battery: about 186g

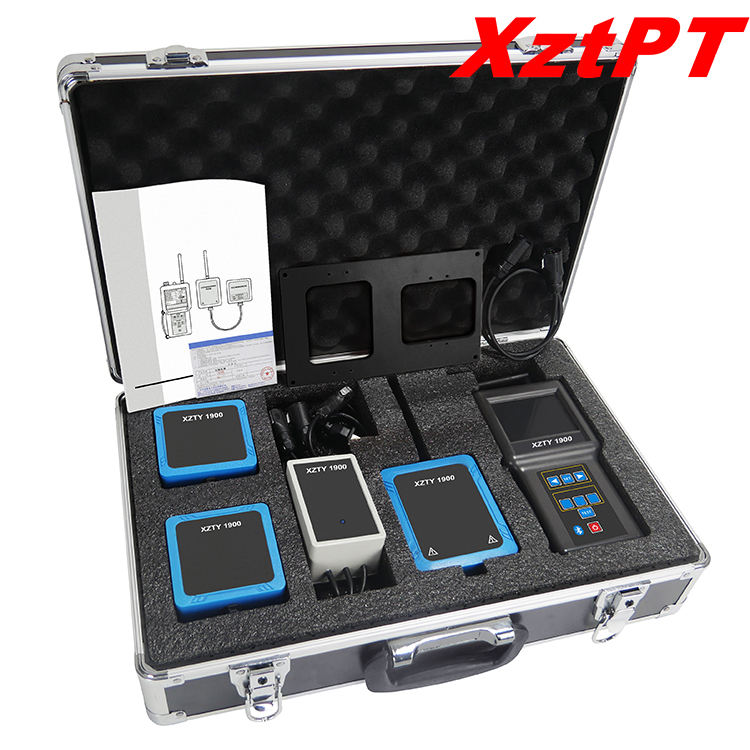

Total mass: about 3.8kg (including accessories)

Self-test function

Press the "TEST" button, the device will perform a self-test, the self-test is completed, the alarm light will flash 2 times, and the buzzer will sound 2 times

Alarm Sensitivity

High, medium and low 3 gear selection

Boundary alarm

Press the "Boundary Alarm" button to set the alarm distance automatically.

Electric inspection alarm mode

Alarm indicator light: continuous flashing

Buzzer: "beep-beep-beep", the volume is greater than 95dB

Speaker: "Electrical hazard, please stay away"

battery level reminder

When the battery voltage of the sensor and receiver is lower than 6.7V, a voice prompt will be issued: "The battery is low", informing the user to replace the battery or charge it in time.

Communication interruption reminder

When the wireless communication between the sensor and the receiver is interrupted, the receiver will issue a voice prompt "wireless communication interrupted" to remind the user to check the antenna.

power consumption

Handheld receiver: about 350mA ( standby ), about 500 mA ( alarm )

Sensor: about 70mA ( standby ), about 150mA ( test)

Sensor and external battery protection level

IP65

bluetooth communication

have

Working temperature and humidity

Sensor -40℃～65℃; Receiver -20℃～55℃; below 80% RH
